Aluminum Solar Frame Double Head Cutting Machine

Get a Price/Quote

Product Details:

General Use cutting
Material Aluminum
Type Metal Cutting Machine
Weight (kg) 1000 Kilograms (kg)
Computerized No
Automatic No
Cutting Function Semi Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity one Piece

Product Specifications

Material Aluminum
Automatic No
BladeSize 500mm
General Use cutting
Dimension(L*W*H) 3650X1580X1660mm Millimeter (mm)
Cutting Function Semi Automatic
Feature Low Energy Consumption High Efficiency Good Quality
Drive Type Electric
Color Gray
Weight (kg) 1000 Kilograms (kg)
Type Metal Cutting Machine
Warranty one year
Computerized No

Trade Information

FOB Port Guangzhou/Shenzhen
Payment Terms Letter of Credit at Sight (Sight L/C) Telegraphic Transfer (T/T)
Supply Ability 10 Piece Per Month
Delivery Time 20-25 Days
Packaging Details in wooden case
Main Export Market(s) Australia North America Middle East Africa South America Asia

Product Description

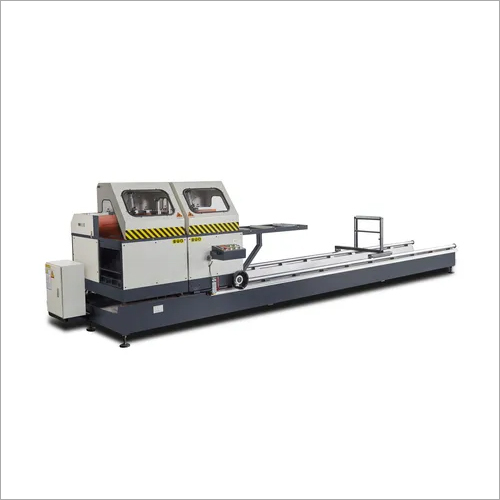

Aluminum Solar Frame Double Head Cutting Machine

Mainly used for cutting aluminum alloy solar frame profile.
its saw blade dimension is 400mm, both of the cutting head fixed for 45 degree.
Adopted italian motor, Taiwan linear guide, can profile 4 pieces of profile at one times.
with imported digital display system, it is ideal choice for cutting solar frame profile in 45 degree

Main Technical Parameter

Saw cutting length	500-2500mm
*Saw cutting (wideheight)**	240X60mm
Main motor power	2.2KW x 2
Main motor rotary speed	2840r/min
Saw blade dimension	400X30X120T
Worktable rotate angle	45
Operation air pressure	0.6-0.8Mpa
Overall dimension	3650X1580X1660mm
Weight	1000KG

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Aluminum Cutting Machine' category

Manual Aluminum Window Single Mitre Saw Product Type : cutting machine Computerized : No Type : Other Warranty : one year Weight (kg) : 700KG Kilograms (kg) Feature : Low Energy Consumption, Low Noise, High Efficiency, Good Quality Cutting Function : Other BladeSize : 500MM Automatic : No Color : Gray Control System : Manual Dimension(L*W*H) : 3850 x 900 x 1300mm Millimeter (mm) Voltage : 380/220/415 Volt (v) Cooling System : Other Material : Steel

Send Inquiry

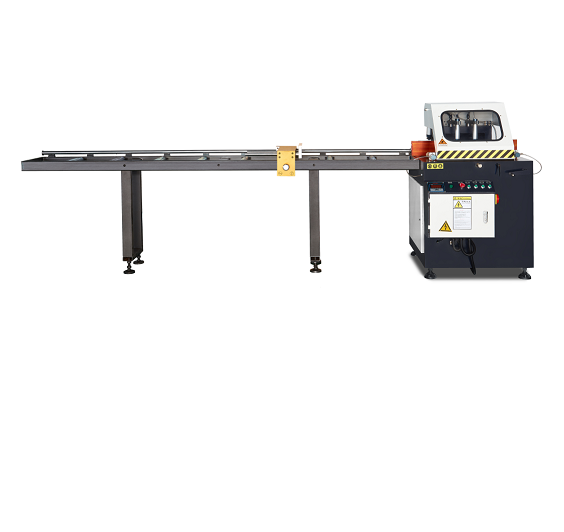

Single Head Saw Aluminum Profile Cutting Machine Product Type : cutting machine Computerized : No Type : Metal Cutting Machine, Automatic Cutting Machine Warranty : one year Weight (kg) : 800 Kilograms (kg) Feature : Good Quality, High Efficiency, Low Noise, Low Energy Consumption Cutting Function : Semi Automatic BladeSize : 500mm Automatic : Yes Color : Gray Control System : Other Voltage : 380/220/415 Volt (v) Cooling System : Other Material : Aluminum
