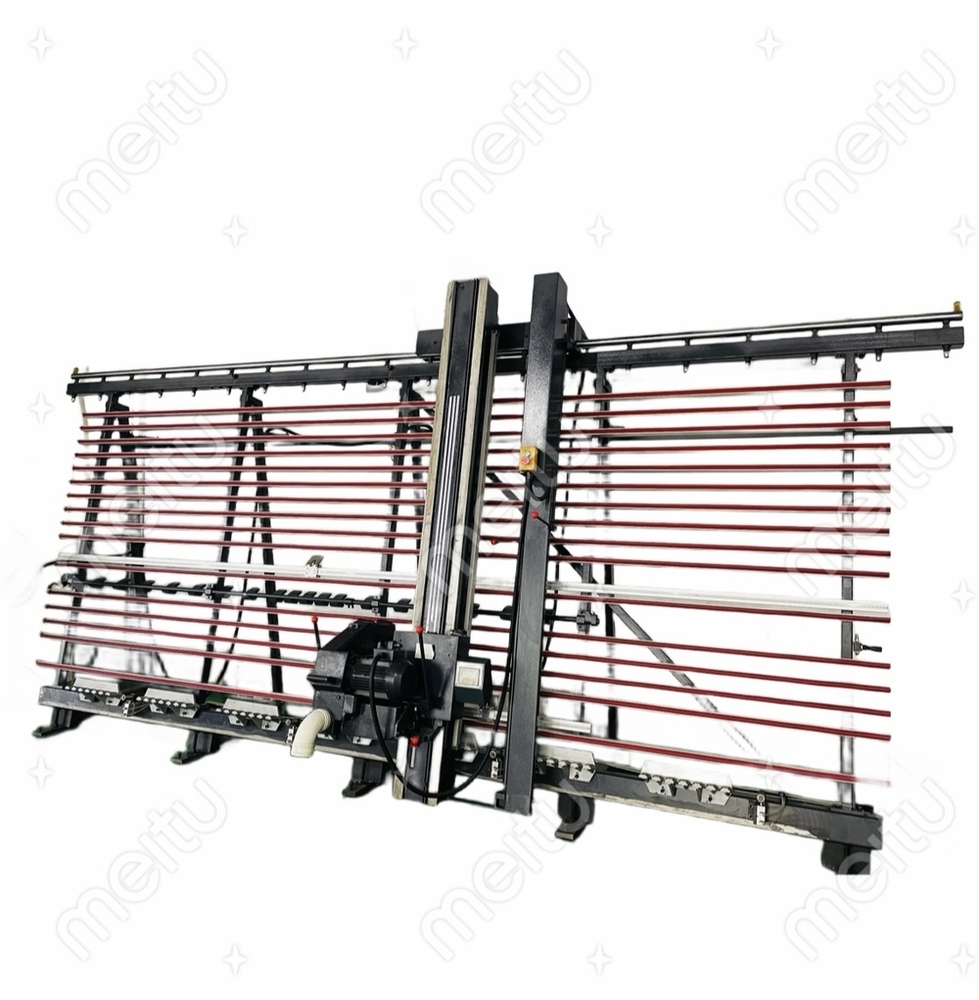

ACP Cutting and Grooving Machine for aluminum cladding
9900.0 USD ($)/Piece
Product Details:
- Connectivity Options Ethernet/USB
- Plastic Processed Aluminum Composite Panel
- Lubricating System Automatic Lubrication
- Features Heavy duty frame, high precision cutting, adjustable speed, safety interlock, low noise
- Motor Power 2.2 kW Kilowatt (kW)
- Machine Type Grooving/Cutting for ACP
- Control System PLC-based
- Click to View more
X
ACP Cutting and Grooving Machine for aluminum cladding Price And Quantity
- 1 Piece
- 9900.0 USD ($)/Piece
ACP Cutting and Grooving Machine for aluminum cladding Product Specifications
- Electrical
- 1200 kg Kilograms (kg)
- Cutting and grooving of ACP/Aluminum panels for cladding & faade work
- 380 V Volt (v)
- 3000 mm x 3200 mm x 1400 mm Millimeter (mm)
- 0.15 mm mm
- 5C - 45C Celsius (oC)
- ACP-GR3000
- one year
- Welded Steel Frame
- Water Cooled
- 2.2 kW
- 50 Hz Hertz (HZ)
- 75 dB db
- 2.2 kW Kilowatt (kW)
- Construction Equipment
- Grooving/Cutting for ACP
- PLC-based
- Electricity
- Automatic Lubrication
- Heavy duty frame, high precision cutting, adjustable speed, safety interlock, low noise
- Other
- Ethernet/USB
- Semi Automatic
- Blue/White
- Painted
- Aluminum Composite Panel
ACP Cutting and Grooving Machine for aluminum cladding Trade Information
- Telegraphic Transfer (T/T)
- in wooden case
Product Description
|
1. |
Cutting dimension (LxH) |
4100x1600mm |
|
2. |
Blade dimension |
2503015mm |
|
3. |
Blade dimension(for cutting) |
250303mm |
|
4. |
Motor power |
3Kw |
|
5. |
Motor rotation speed |
2840 rpm |
|
6. |
Diagonal deflection |
2000mm, deflection1.5mm 2000mm, deflection2.5mm |
|
7. |
Overall dimension (LWH) |
520015002300mm |
|
8. |
Packing dimension(main lather) |
550010002600mm |
|
9. |
Packing dimension(motor) |
270012001000mm |
|
10. |
Weight |
1900Kg |
Precise and Versatile Grooving
With adjustable grooving widths and angles, the ACP-GR3000 delivers exact cuts and precise grooving for varied design specifications. Its 0.15 mm accuracy and high spindle speed ensure flawless finishes, supporting projects that demand both reliability and aesthetic quality.
Advanced Safety and User Interface
Safety is prioritized through emergency stops and robust protective covers. Operators interact via a user-friendly touch screen HMI, simplifying control over speed, cutting, and grooving parameters. The PLC-based system further enhances safe, semi-automatic operation and monitoring.
Efficient Dust Management and Panel Handling
Clean working environments are maintained by the integrated dust collector with bag. Vacuum suction cups securely hold panels, minimizing movement for uninterrupted cutting and grooving. This thoughtful system reduces downtime and promotes continuous production.
FAQs of ACP Cutting and Grooving Machine for aluminum cladding:
Q: How does the ACP Cutting and Grooving Machine handle panel holding during operation?
A: The machine uses vacuum suction cups to securely hold panels in place during cutting and grooving, minimizing movement and enhancing accuracy throughout the process.Q: What panel sizes can be processed with this machine?
A: It accommodates panels from a minimum size of 300 mm x 300 mm to a maximum of 2440 mm x 5800 mm, making it suitable for various cladding and faade applications.Q: When is it recommended to use the adjustable grooving angle feature?
A: The adjustable grooving angles of 90 and 135 are used to tailor cuts for different bending requirements, facilitating diverse architectural designs in aluminum panel installation.Q: Where should the ACP Cutting and Grooving Machine be installed for optimal operation?
A: Install the machine in a well-ventilated workshop with a stable electrical connection and air pressure (6-8 bar), avoiding extreme temperatures to ensure reliable performance within its 5C45C operating range.Q: What is the process for changing tools or blades on this machine?
A: Tool changes are completed using the manual quick change system, allowing operators to efficiently swap blades or accessories with minimal downtime and no special tools needed.Q: How does the integrated dust collection system benefit workshop efficiency?
A: By automatically collecting dust during operation, the integrated system keeps the workspace clean and safe, reduces airborne particles, and lessens routine maintenance requirements.Q: What are the primary advantages of using the ACP-GR3000 machine for cladding projects?
A: Its high production speed, precise cutting, user-friendly controls, and safety features significantly enhance productivity, accuracy, and operator protection in cladding and faade fabrication.Tell us about your requirement
